Jindal MLC Pipes deliver unmatched flexibility and strength for hot and cold water supply. Built with multilayer composite technology, they combine aluminum strength with plastic flexibility. The result is easy bending, fewer fittings, and long-lasting joints. Tested to Indian & international standards, these pipes deliver 50 years of consistent, maintenance-free service.

COMPOSITION

PE-AL-PE / PERT-AL-PERT

Multi-layer composite structure with Inner and Outer layers of HDPE (High Density Polyethylene) and Middle layer of Aluminium.

Where Is The Nearest Industrial Company?

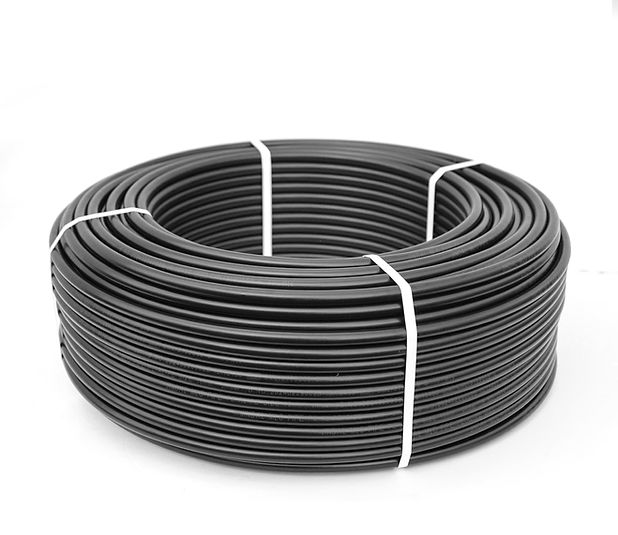

SIZEIDODCOIL
16mm12mm16mm200mtr
20mm16mm20mm200mtr
25mm20mm25mm100mtr
32mm25mm32mm100mtr
40mm32mm40mm100mtr
50mm40mm50mm50mtr
63mm50mm63mm6mtr
75mm63mm75mm6mtr

APPLICATIONS

Hot & Cold Water supply

Hot & Cold Water, Drinking Water, Solar Water​, HVAC systems, Underfloor Heating & Cooling

TECHNICAL SPECS

Pressure Rating
13.8 bar at 23°C
11.0 bar at 60°C
6.9 bar at 82°C
Temperature Rating
MLC PIPES: -20°C to 82°C
MLC PRO: -20°C to 95°C
Certification
IS : 15450 (2022)
ASTM F 1282

PRODUCT FEATURES

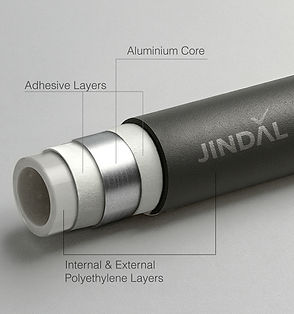

Multi-Layer tech

Combines polymer and aluminum layers for strength, durability, and reliability.

Bendable

Easily bends around corners, reducing fittings and speeding up installation.

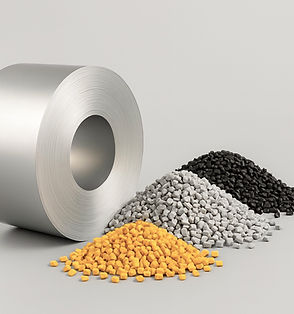

Food Grade Materials

Manufactured with food-grade materials for pure, hygienic water supply.

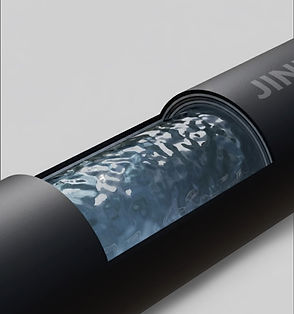

Higher Flow Rates

30% Better flow rate compared to traditional piping systems

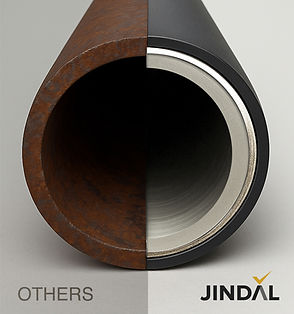

50 Years working life

Rust & Corrosion free, engineered to last over five decades.

PRODUCT RANGE

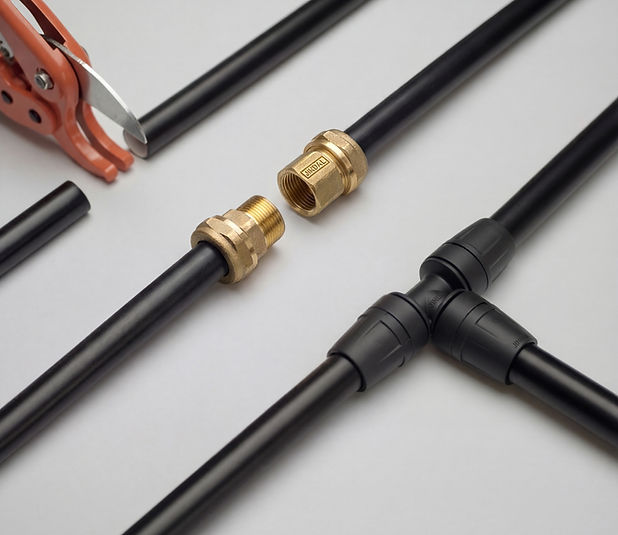

FITTING TECHNOLOGIES

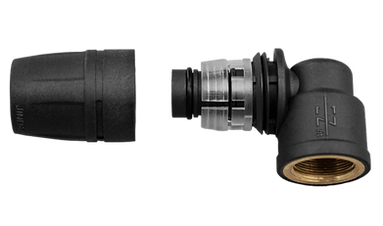

Compression Fittings
EZ - FIT

Compression Tightening
No Special tools needed
Glass-filled Nylon Body

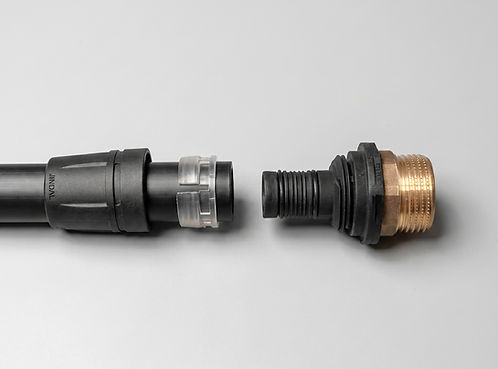

Press Fittings
EZ - PRESS

Press Installation
Permanent Joint
Nylon / Brass body

Compression Fittings
BRASS-FIT

Compression Tightening
No Special tools needed
Complete Brass Body

Installation Guide

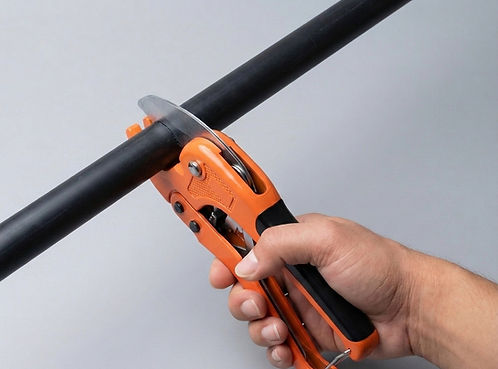

1. Cut the pipe from a perpendicular angle using the Pipe Cutter

2. Round and chamfer the pipe using a reamer with 3–5 rotations for proper insertion

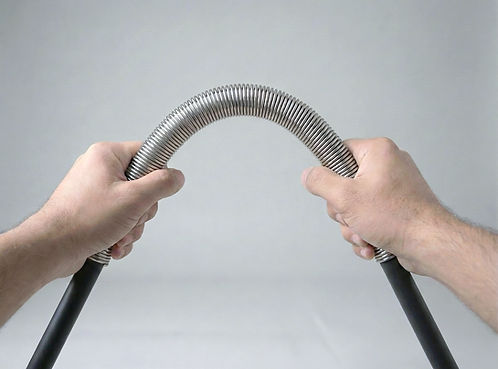

3. Use the Internal/External Bending Springs for bending the pipe to avoid dents

4. Disassemble the fittings and put the Nut & Split ring over the pipe

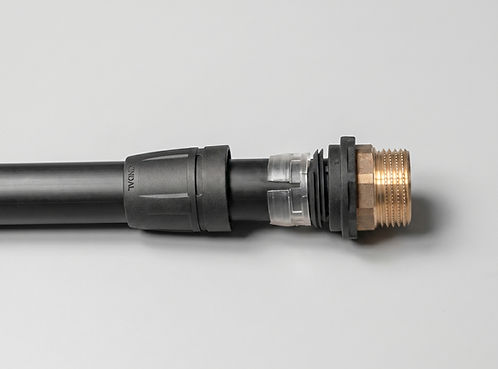

5. Insert the fitting nozzle into the Pipe opening

6. Tighten the nut, and you're ready to go!
