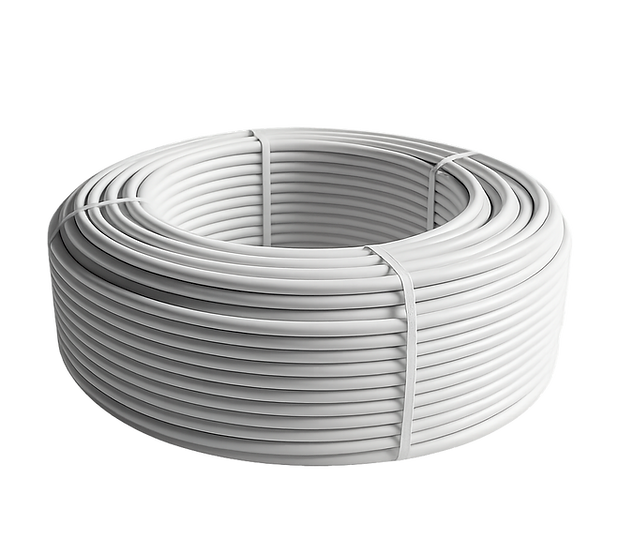

Jindal MLC Pro Pipes handle higher temperatures where standard multilayer pipes reach their limit. Built with PE-RT inner and outer layers bonded to aluminium, they deliver sustained performance up to 95°C. The result is reliable hot water flow, fewer fittings, and leak-proof joints. Tested to Indian & international standards, these pipes deliver 50 years of consistent, maintenance-free service.
COMPOSITION
PE-AL-PE / PERT-AL-PERT
Multi-layer composite structure with Inner and Outer layers of HDPE (High Density Polyethylene) and Middle layer of Aluminium.
Where Is The Nearest Industrial Company?

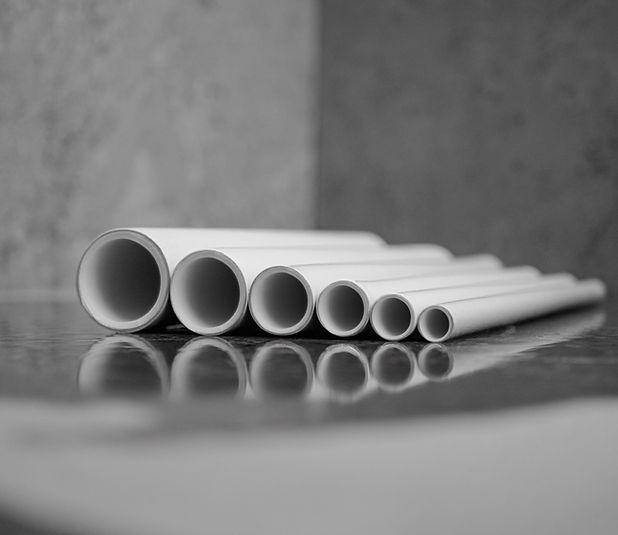

| SIZE | ID | OD | COIL |
|---|---|---|---|
| 16mm | 12mm | 16mm | 200mtr |
| 20mm | 16mm | 20mm | 200mtr |
| 25mm | 20mm | 25mm | 100mtr |
| 32mm | 25mm | 32mm | 100mtr |
| 40mm | 32mm | 40mm | 100mtr |
| 50mm | 40mm | 50mm | 50mtr |
| 63mm | 50mm | 63mm | 6mtr |
| 75mm | 63mm | 75mm | 6mtr |
APPLICATIONS
Hot & Cold Water supply
Hot & Cold Water, Drinking Water, Solar Water, HVAC systems, Underfloor Heating & Cooling
TECHNICAL SPECS
Pressure Rating
13.8 bar at 23°C
11.0 bar at 60°C
6.9 bar at 82°C
11.0 bar at 60°C
6.9 bar at 82°C
Temperature Rating
MLC PIPES: -20°C to 82°C
MLC PRO: -20°C to 95°C
MLC PRO: -20°C to 95°C
Certification
IS : 15450 (2022)
ASTM F 1282
ASTM F 1282
PRODUCT FEATURES
Multi-Layer tech
Combines polymer and aluminum layers for strength, durability, and reliability.
Bendable
Easily bends around corners, reducing fittings and speeding up installation.

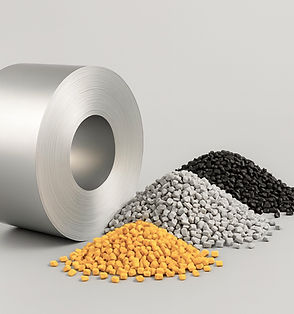

Food Grade Materials
Manufactured with food-grade materials for pure, hygienic water supply.

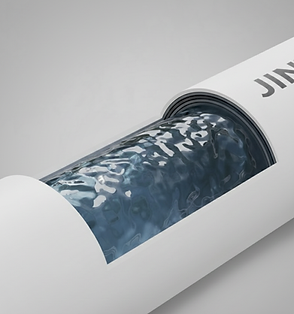

Higher Flow Rates
30% Better flow rate compared to traditional piping systems

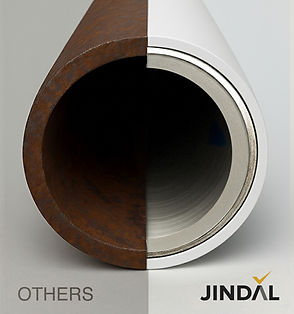

50 Years working life
Rust & Corrosion free, engineered to last over five decades.
PRODUCT RANGE
FITTING TECHNOLOGIES

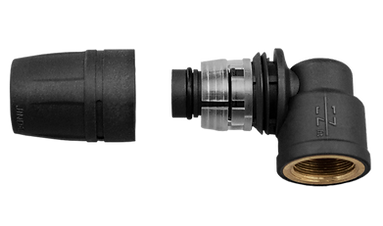

Compression Fittings
EZ - FIT
Compression Tightening
No Special tools needed
Glass-filled Nylon Body

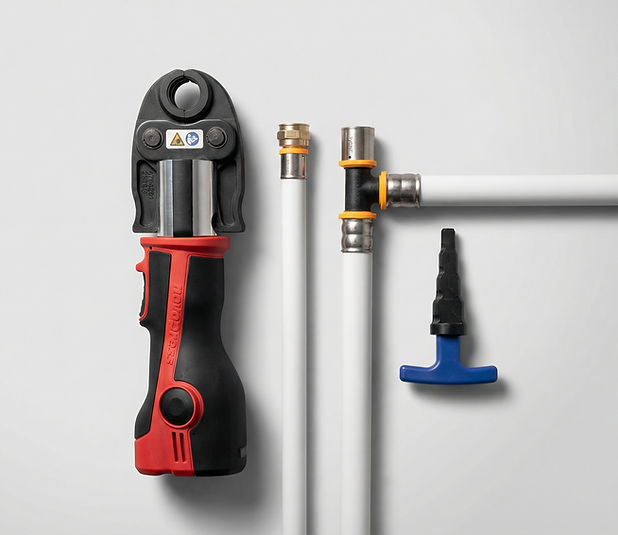

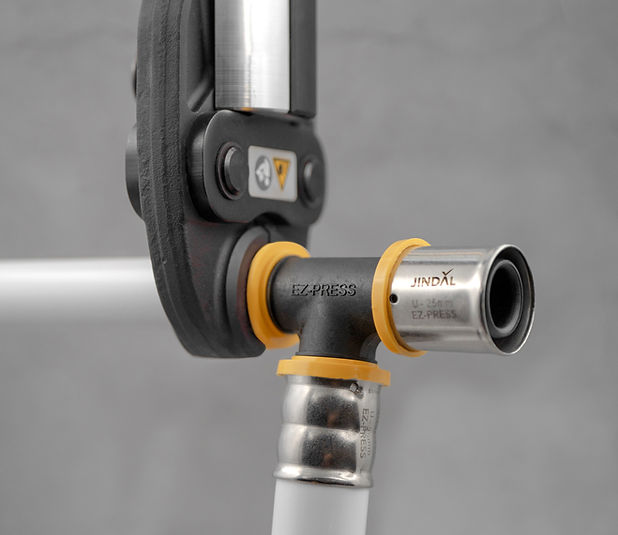

Press Fittings
EZ - PRESS
Press Installation
Permanent Joint
Nylon / Brass body

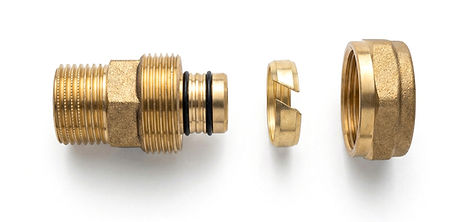

Compression Fittings
BRASS-FIT
Compression Tightening
No Special tools needed
Complete Brass Body
Installation Guide

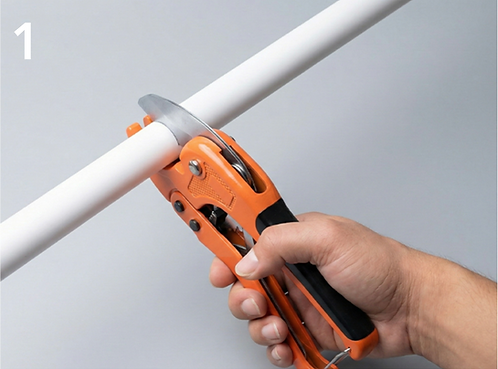

Cut the pipe from a perpendicular angle using the Pipe Cutter

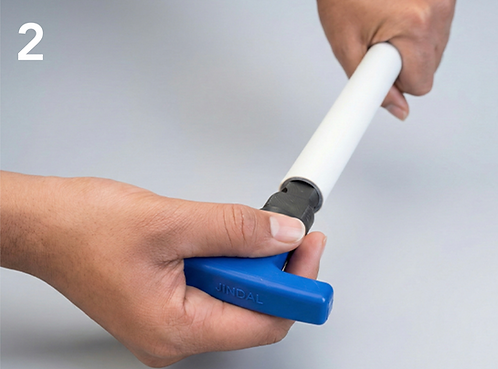

Round and chamfer the pipe using a reamer with 3–5 rotations for proper insertion

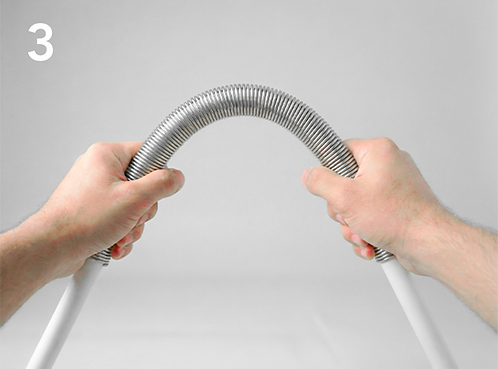

Use the Internal/External Bending Springs for bending the pipe to avoid dents

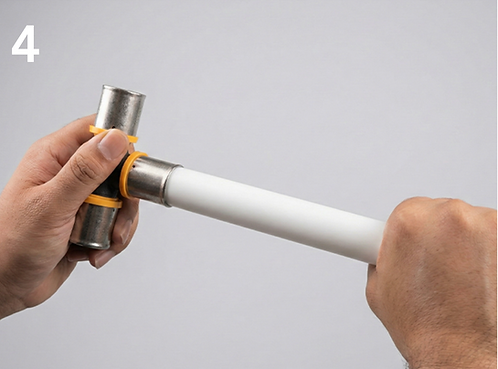

Insert the pipe fully into the fitting until it is correctly seated and ready for pressing

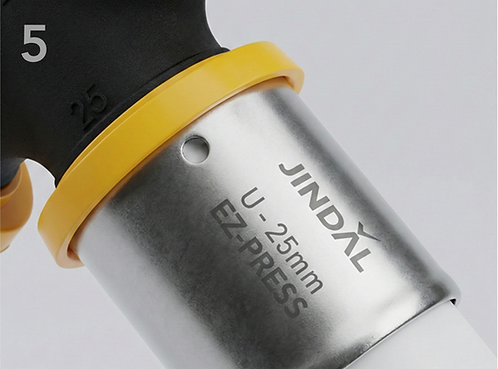

Ensure the pipe is visible through the inspection hole on the SS Sleeve

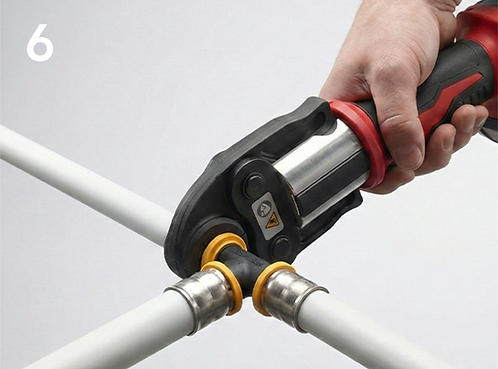

Select the correct size press jaw, align it with the sleeve, and press until the cycle is complete
Learn the proper way to install Jindal Multi Layer Composite Pipes by watching a quick video linked below. When installed correctly there is zero chance of leakages and you will have a piping system that will last you over 50 years.
